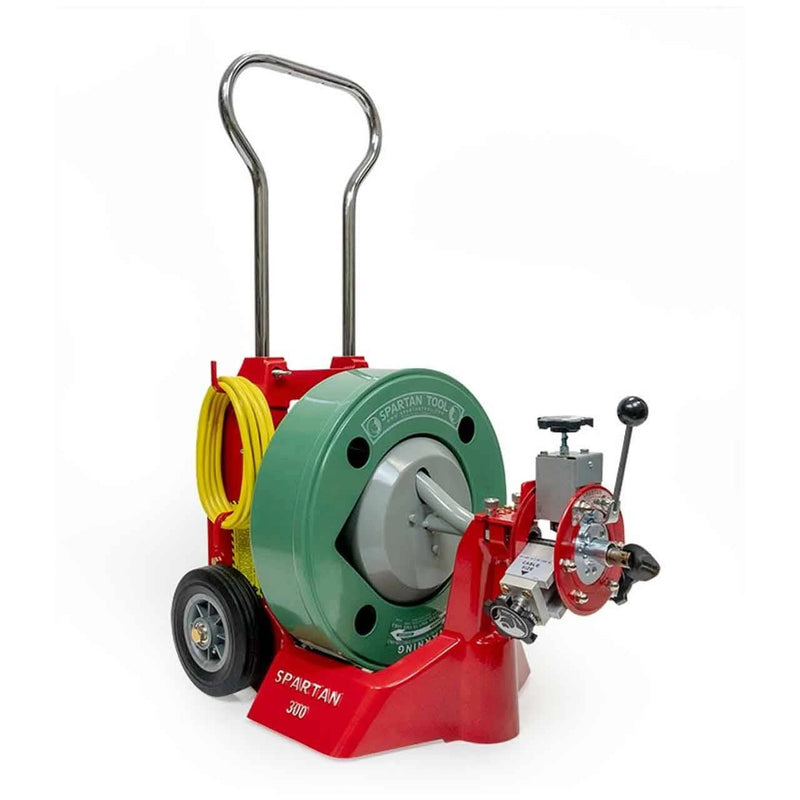

The Spartan Tool Model 300 Drain Cleaning Machine is a drum machine for 3" to 6" lines. It ships with Drum, Power Cable Cable Safety Guide and Universal Anchor.
Challenging jobs won't put you in a tough spot. The Model 300's compact design makes it perfect for tight spaces and narrow doorways. It touts exclusive features such as our patented Dial-A-Cable power feed that automatically sends cable in and out of the line and our whisper-quiet, gear- reduced Permanent Magnet motor that provides quicker torque and longer life. Its 107' cable capacity means you don't have to give up big power and performance in a compact machine.
Features
- Medium-weight machine with heavy- duty power for 3" - 6" lines up to 200' when used with second drum
- Compact design allows operation in tight spaces and fits through the narrowest doorways
- Permanent Magnet gear-reduced quiet motor with watertight switch makes Spartan machines the quietest in the industry
- Accepts the Model 100 drum for added flexibility
- Patented Dial-A-Cable power feed allows for quick cable changes and feeds cable in and out automatically
- Independent rotating inner drum prevents cable kinking and buckling that can break cables
- Quick interchangeable drum capability
- Direct drive with cable-saving slip clutch
- Air-operated foot switch
- 25' power cord with ground fault interrupter
Common Questions
- What pipe sizes does the Model 300 Drain Cleaning Machine work on?
- The Model 300 Drain Cleaning Machine is built for 3" to 6" lines.
- Does the Model 300 Drain Cleaning Machine come with cable?
- No — this is the power unit only ("cable not included" per the catalog). It runs 107' of .55" Magnum or 82' of 5/8" (with anchor/leader cable); cable is sold separately.
- What power does the Model 300 Drain Cleaning Machine need?
- 120 volt / 4.2 amp / 4/10 HP.
- What comes in the box with the Model 300 Drain Cleaning Machine?
- It ships with Drum, Power Cable Cable Safety Guide and Universal Anchor.
- How much does the Model 300 Drain Cleaning Machine weigh?
- 103 lbs.
Specifications
-
Warranty: 2 years (Spartan Tool equipment warranty)
-
MPN: 04221458
-
Series: Model 300
-
Device Type: Drum Machine
-
Pipe Size Range: 3" to 6"
-
Cable Capacity: 107' of .55" Magnum or 82' of 5/8" (with anchor/leader cable)
-
Maximum Run (ft): 200
-
Motor RPM: 300
-
Electrical Requirement: 120 volt / 4.2 amp / 4/10 HP
-
Overall Length (in): 18.0
-
Overall Width (in): 23.0
-
Overall Height (in): 30.0
-
Spec Sheet: https://spartantool.com/content/data_sheets/Model-300_manual.pdf
-
Kit Includes: Drum;Power Cable Cable Safety Guide;Universal Anchor
